Using the UN System Data Commons

Source: vignettes/using-un-data-commons.Rmd
using-un-data-commons.Rmd

Learning Objectives

By the end of this vignette, you will be able to:

  • Point the datacommons R package at a custom Data Commons deployment instead of the public api.datacommons.org endpoint
  • Query the UN System Data Commons, a deployment maintained by the UN Statistics Division on the same Data Commons Core software
  • Explore UN-specific statistical variables and place hierarchies through dc_get_node()
  • Retrieve and compare observations across countries through dc_get_observations()
  • Resolve place names to DCIDs through dc_get_resolve()
  • Understand which parts of the API are available on this particular deployment

Why a Different Deployment?

Data Commons isn’t a single server: it’s an open-source graph platform (“Data Commons Core”) that different organizations can deploy with their own data. The public api.datacommons.org endpoint is Google’s instance, blended from many sources. The UN System Data Commons is the UN Statistics Division’s own deployment of the same software, built from official UN statistical series (UNICEF, UN Population Division, and other UN agencies) instead of Google’s blend.

Because both run the same underlying API, the datacommons R package can talk to either one. All you change is the base_url (and, for the UN deployment, you don’t need an API key at all).

Prerequisites

Pointing the Package at the UN Deployment

Every function in the package accepts a base_url argument, defaulting to Sys.getenv("DATACOMMONS_BASE_URL") with a fallback to the public endpoint. Instead of passing base_url on every call, set it once for the session with dc_set_base_url():

un_base_url <- "https://unsd-datacommons.gcp.un-icc.cloud/core/api/v2/"
dc_set_base_url(un_base_url)

This deployment answers requests without an API key, so there is no equivalent of dc_set_api_key() to call here. If that ever changes, or if you use a different Data Commons Core deployment that does require one, pass api_key the same way you would for the public API.

Any call you make for the rest of this session — or until you call dc_set_base_url() again — goes to the UN deployment.

Example 1: Inspecting the Graph

The UN deployment ships its own guide to inspecting the graph over REST, which maps directly onto dc_get_node(). Let’s find out what a country is contained in:

rwanda_regions <- dc_get_node(
  nodes = "country/RWA",
  expression = "->containedInPlace",
  return_type = "list"
)

rwanda_regions$data$`country/RWA`$arcs$containedInPlace$nodes |>
  lapply(\(x) {
    data.frame(
      name = x$name,
      types = paste(x$types, collapse = ", ")
    )
  }) |>
  bind_rows() |>
  kable(caption = "Places containing Rwanda")
Places containing Rwanda
name types
Eastern Africa UNGeoRegion
Sub-Saharan Africa UNGeoRegion
Africa Continent
Landlocked developing countries (LLDCs) GeoRegion
Landlocked developing countries (LLDCs): Africa GeoRegion
Least developed countries (LDCs) GeoRegion
Least developed countries (LDCs): Africa GeoRegion

UN statistical variables follow their own DCID convention, prefixed by the contributing agency, e.g. undata/unicef/DM_POP.SEX--F for “total population, female”. You can inspect what a variable belongs to the same way you would inspect a place:

dc_get_node(
  nodes = "undata/unicef/DM_POP.SEX--F",
  expression = "->[name, populationType]",
  return_type = "list"
) |>
  str(max.level = 5)
#> List of 1
#>  $ data:List of 1
#>   ..$ undata/unicef/DM_POP.SEX--F:List of 1
#>   .. ..$ arcs:List of 2
#>   .. .. ..$ name          :List of 1
#>   .. .. .. ..$ nodes:List of 1
#>   .. .. ..$ populationType:List of 1
#>   .. .. .. ..$ nodes:List of 1

Example 2: Comparing Population by Sex Across Countries

Real-world motivation: UNICEF’s demographic series break population down by sex, age, and other dimensions. Let’s compare the female and male population of a group of East African countries.

east_africa <- c(
  "country/BDI",
  "country/KEN",
  "country/RWA",
  "country/TZA",
  "country/UGA"
)

pop_by_sex <- dc_get_observations(
  date = "latest",
  variable_dcids = c(
    "undata/unicef/DM_POP.SEX--F",
    "undata/unicef/DM_POP.SEX--M"
  ),
  entity_dcids = east_africa,
  return_type = "data.frame"
) |>
  mutate(sex = if_else(str_detect(variable_name, "Female"), "Female", "Male"))

pop_by_sex |>
  select(country = entity_name, sex, value) |>
  arrange(country, sex) |>
  kable(caption = "Latest population by sex, East Africa")
Latest population by sex, East Africa
country sex value
Burundi Female 7240984
Burundi Male 7149018
Kenya Female 28935936
Kenya Male 28596556
Rwanda Female 7456952
Rwanda Male 7112388
Tanzania Female 35568490
Tanzania Male 34977375
Uganda Female 25889256
Uganda Male 25495638

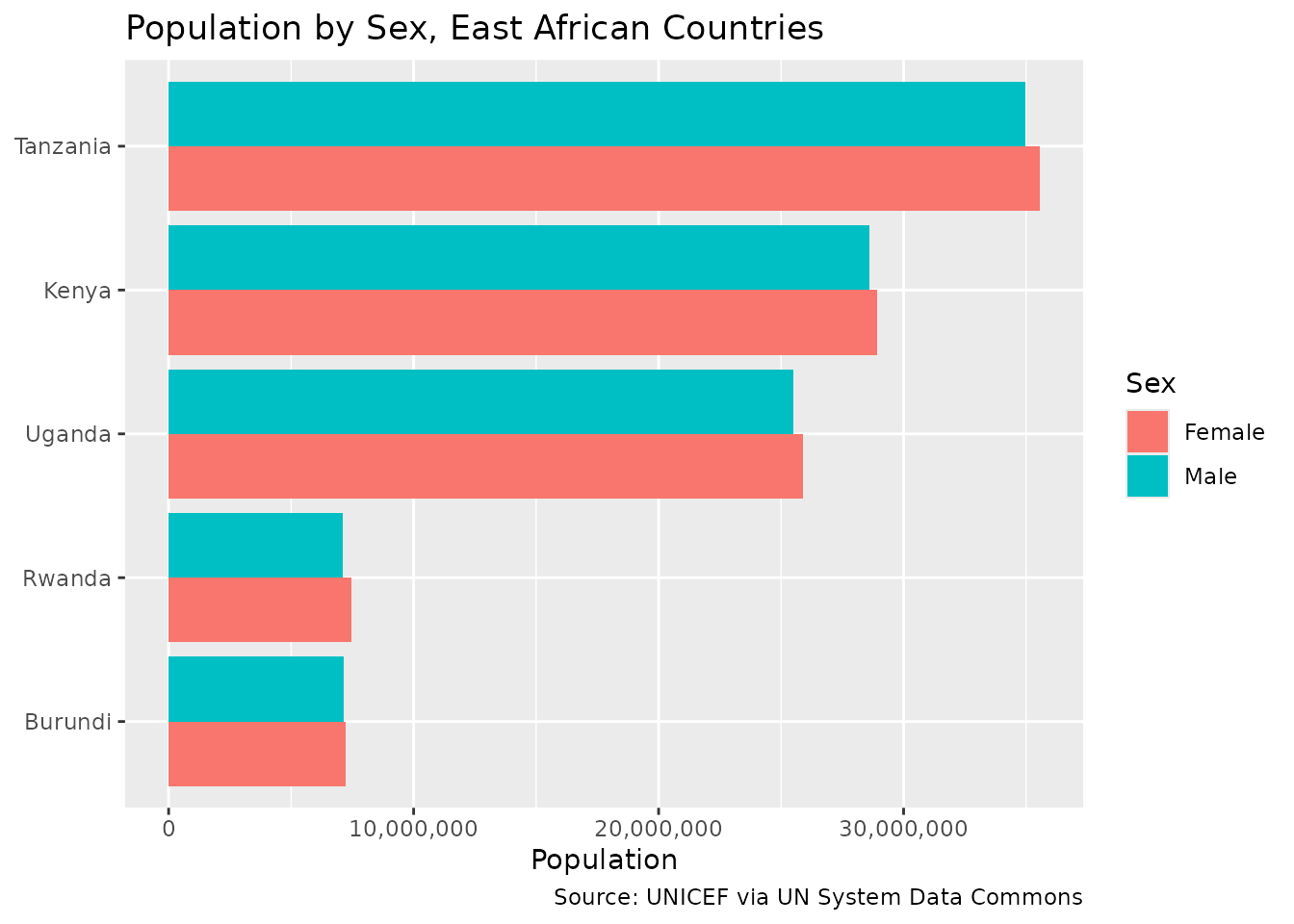

ggplot(
  pop_by_sex,
  aes(x = reorder(entity_name, value), y = value, fill = sex)
) +
  geom_col(position = "dodge") +
  coord_flip() +
  scale_y_continuous(labels = label_comma()) +
  labs(
    title = "Population by Sex, East African Countries",
    x = NULL,
    y = "Population",
    fill = "Sex",
    caption = "Source: UNICEF via UN System Data Commons"
  )

Key insight: The same dc_get_observations() call you’d use against api.datacommons.org works unchanged here — only the underlying variable and place DCIDs differ, because they come from a different data source.

Example 3: Resolving Place Names

Just like the public API, the UN deployment supports resolving human-readable names to DCIDs:

dc_get_resolve(
  nodes = c("Kenya", "Uganda"),
  expression = "<-description->dcid",
  return_type = "list"
) |>
  str()
#> List of 1
#>  $ entities:List of 2
#>   ..$ :List of 2
#>   .. ..$ node      : chr "Kenya"
#>   .. ..$ candidates:List of 1
#>   .. .. ..$ :List of 1
#>   .. .. .. ..$ dcid: chr "country/KEN"
#>   ..$ :List of 2
#>   .. ..$ node      : chr "Uganda"
#>   .. ..$ candidates:List of 1
#>   .. .. ..$ :List of 1
#>   .. .. .. ..$ dcid: chr "country/UGA"

Limitations of This Deployment

Not every endpoint behaves the same across deployments. As of this writing, the UN deployment’s edge infrastructure rejects POST requests to /sparql with an HTTP 403 before they reach the application — GET requests to /node, /observation, and /resolve all work normally. This means dc_post_sparql() currently won’t work against un_base_url, even though it works against the public API. If you need SPARQL access to UN data, check with the UN Statistics Division for the current status of that endpoint.

Tips for Working with Custom Deployments

  1. base_url must end in /core/api/v2/: the package validates this for any URL other than the public default, to catch typos early.
  2. Explore before you query: use dc_get_node() with <-typeOf, ->containedInPlace, or <-member to discover variable and place DCIDs specific to the deployment, the same way you’d use the Statistical Variable Explorer for the public API.
  3. Switch back when you’re done: dc_set_base_url("https://api.datacommons.org/v2/") restores the default for the rest of your session.
  4. Not all endpoints are guaranteed: a deployment can expose a subset of the API, or apply different infrastructure-level restrictions (as with SPARQL above). Test the specific endpoint you need.
